Enfield Technologies
Enfield Technologies has been providing advanced automation control solutions since 1991. Their patented servo-pneumatic systems provide infinitely variable control of pneumatic devices such as air cylinders and pressure vessels. Enfield Technologies systems are the preferred choice of designers in industrial automation, product testing, and animatronics because our systems operate faster and smoother than alternative systems.

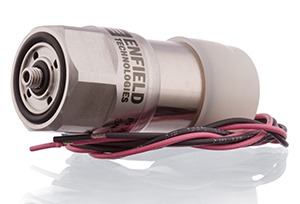

2/2 Proportional Valves
PFV liquid and gas 2/2 proportional solenoid valves simplify design and construction of medical, life-science, semiconductor and other OEM equipment. Featuring a wetted path made of 300 and 400 series stainless steel and FKM, EPDM and FFKM seal options, PFV proportional solenoid valves flow not only air and water but also the most challenging media.
Controllers
Enfield’s proportional valve controllers with integrated bi-directional valve drivers are designed to optimize the performance of the LS and Enfinity series valves for pressure, speed, temperature, force, flow and position control applications.
Cylinder Positioning Systems
The S2 servo pneumatic positioning system combines together a proportional valve, sensors and embedded control electronics to linearly position cylinders and actuators, creating an air servoactuator that can be controlled from the PLC (Programmable Logic Controller). This electro positioner allows cylinders and actuators to stop at unlimited midstroke positions, follow complex profiles or simply prevents slamming at the ends.

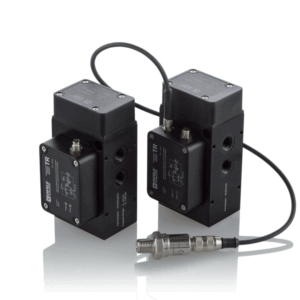

Pressure Regulators
Enfield offers two types of pressure regulators: electronic and manual. Electronic Pressure Regulators (EPRs) take an electric (0…10V or 4…20mA) signal as a pressure setpoint from a PLC, ADC or microprocessor a provide a linear pressure output in response. Manual pressure regulators are adjusted by a knob which allows the operator to set the pressure visually based on an onboard gauge.

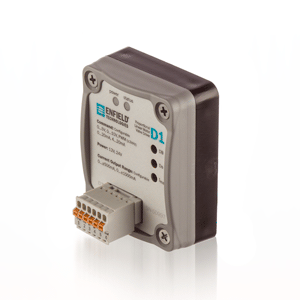

Proportional Valve Drivers
To remove the effects of temperature and power supply variations from valve performance, it is important to use a closed-loop-current valve driver. Enfield uni-drectional and bi-directional proportional valve drivers accomplish this by delivering a controlled current across solenoid and bi-directional voice-coils.
Available in both pulse width modulated (PWM) or linear driver models, users can choose between the benefits of power consumption and energy efficiency or reduced noise and current ripple. Enfield drivers act as power amplifiers, taking a low-power analog input signals from PLCs or microprocessors (such as +/-10V, 4…20mA or 0…10V) and outputting a high-power closed loop current across the coil.
Bi-directional proportional valve drivers are ideal for voice-coils which require both positive and negative current control, while uni-directional proportional valve drivers are ideal for solenoids which only require current in a single direction.
Clayton Controls is an Enfield Technologies distributor in California. We offer technical support to help our customers solve their applications.
